Products

Advanced clean-energy technology for a sustainable tomorrow.

Direct Steam Gas Generators

OxCE has developed an innovative oxy-fuel combustion system that uses natural gas and oxygen to power, steam, and/or heat for industrial processes with near zero emissions. OxCE’s proprietary technology is an oxy-combustion burner (“direct steam gas generator” or “DSGG”) which combusts natural gas with oxygen, in a highly efficient manner. Clean, firm power plants using OxCE technology produce baseload electricity and a high-purity CO2 stream, which is ready for downhole sequestration or beneficial re-use in other industrial applications. Waste heat can also be captured for use by a co-located industrial user, meaning that the clean, firm plants could operate as co-generation facilities. OxCE technology is highly advantaged compared to post-combustion carbon capture, as it is both lower cost and can capture almost 100% of the CO2 emissions.

OxCE technology is both compact, modular and scalable. Oxy-combustion burner units are packaged in transportable containers, minimizing the required on-site installation time.  OxCE can support 20-300+ MW projects, using existing proven technology.

OxCE’s DSGG consist of three main parts: a burner, attemperator, and associated feed and controls systems. DSGG burners utilize platelet technology to intimately mix gaseous fuel with oxygen in the presence of water for stable, efficient combustion. Multiple attemperation chambers inject water to cool the resulting superheated, high-pressure steam and CO2, producing additional steam and controlling combustion. Associated water, oxidizer, and fuel feeder systems are designed for the specific fuel qualities targeted in your project. Oxygen is supplied by a traditional air separation unit (ASU).

You can learn more about OxCE's direct steam generation technology and some typical process configurations by downloading our brochure.

Dense industrial machinery with pipes, valves, and rusted flanges inside a mechanical room
Industrial machinery with large metal pipes, valves, and gauges in a factory room

Direct Steam Gas Generator 400

The DSGG400 uses a 4-inch (10 cm) internal diameter system design and is rated for 20 MWt when running on pipeline quality natural gas at typical pressures.

Black gear icon on a white background

Applications

  • Clean Firm Power
  • Combined Heat and Power (CHP)
  • Industrial Decarbonization
  • Clean Steam Production
  • Produced Water Treatment & Thermal Enhancement
  • Enhanced Oil and Gas Recovery (EOR, EGR)
Black ruler icon with white measurement marks and a hole at one end

Typical Dimensions

L40-45' x W11' x H11' (12-14m x 4m x 4m) in operational enclosure.

Black rounded-square app icon with four white rounded squares in a 2x2 grid

Features

  • Fully containerized or skid mounted solutions for minimal install time and cost
  • Fully automated control system via Allen Bradley PLC, e.g. fuel demand, temperature control, load following, etc.
  • Independent control over produced gas pressure and temperature
  • Easy access maintenance system for full module or component replacement
  • Unit can be completely overhauled in <24 hours
  • Built to ASME BPVC Section VIII Division 2
  • Increased safety via high-speed ignition detection (on the order of <500ms) and minimal stored volume; unit can be tripped, purged, and made safe for internal work in <15 min.
Nominal
Customizable Range
Drive Gas Output
82,944 lbs/hr (37,622 kg/hr)
Up to 311,070 lbs/hr (141,099 kg/hr)
CO2 Output
1,850 mscfd (100 tonnes per day)
Up to 17,880 mscfd (940 tonnes/day)
Drive Gas Composition
~94 mol% H2O, 6 mol% CO2
Up to 90% CO2 content
Exit Temperature
Saturation up to 3,200 °F (1,760 °C)
Supply Pressure
1,800 psi (124 bar)
Up 5,000 psi (345 bar)
Exit Pressure
1,500 psi (100 bar)
Up to 4,200 psi (290 bar)
Operating Range
30 – 100% fuel demand
Nominal
Customizable Range
Drive Gas Output
594,990 lb/hr (269,875 kg/hr)
Up to 1,655,000 lb/hr (750,700 kg/hr)
CO2 Output
18,500 mscfd (970 tonnes/day)
Up to 60,000 mscfd (3,140 tonnes/day)
Drive Gas Composition
~94 mol% H2O, 6 mol% CO2
Up to 90% CO2 content
Exit Temperature
Saturation up to 3,200 °F (1,760 °C)
Supply Pressure
600 psi (41.5 bar)
Up to 1,825 psi (126 bar)
Exit Pressure
500 psi (34.5 bar)
Up to 1,520 psi (105 bar)
Operating Range
35-100% fuel demand

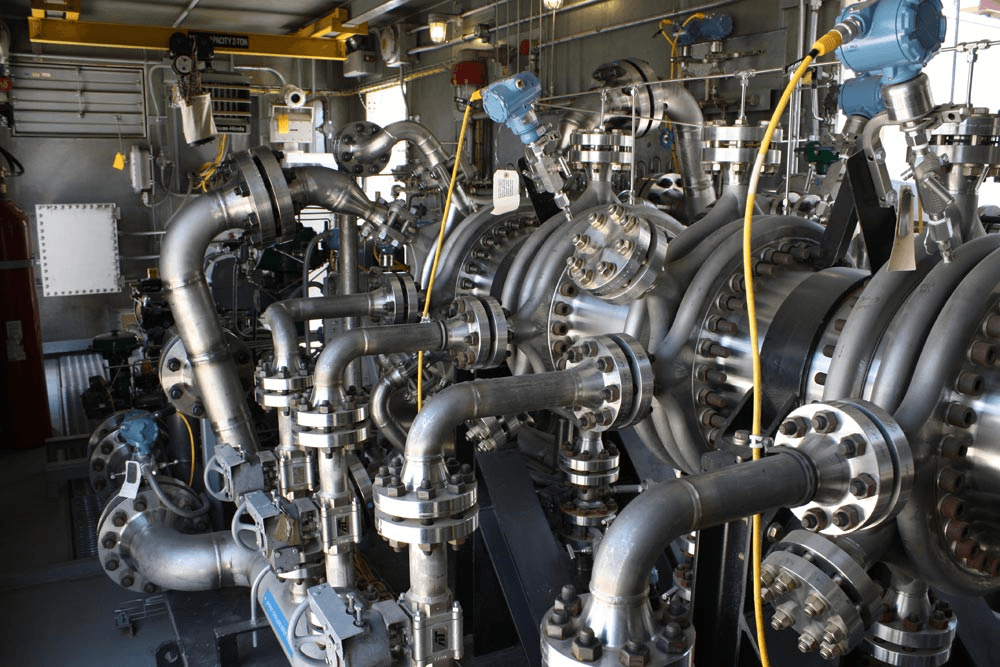

Direct Steam Gas Generator 1200

The DSGG1200 is a scaled version of the DSGG400 using a 12-inch (30 cm) internal diameter system rated for 200 MWt when running on pipeline quality natural gas at typical pressures.

Black gear icon on a white background

Applications

  • Clean Firm Power
  • Combined Heat and Power (CHP)
  • Industrial Decarbonization
  • Clean Steam Production
  • Produced Water Treatment & Thermal Enhancement
  • Enhanced Oil and Gas Recovery (EOR, EGR)
Black ruler icon tilted diagonally on a white background

Typical Dimensions

L40-45' x W11' x H11' (12-14m x 4m x 4m) in operational enclosure.

Black rounded-square app icon with four white rounded squares in a 2x2 grid

Features

  • Fully containerized or skid mounted solutions for minimal install time and cost
  • Fully automated control system via Allen Bradley PLC, e.g. fuel demand, temperature control, load following, etc.
  • Independent control over produced gas pressure and temperature
  • Easy access maintenance system for full module or component replacement
  • Unit can be completely overhauled in <24 hours
  • Built to ASME BPVC Section VIII Division 2
  • Increased safety via high-speed ignition detection (on the order of <500ms) and minimal stored volume; unit can be tripped, purged, and made safe for internal work in <15min.
